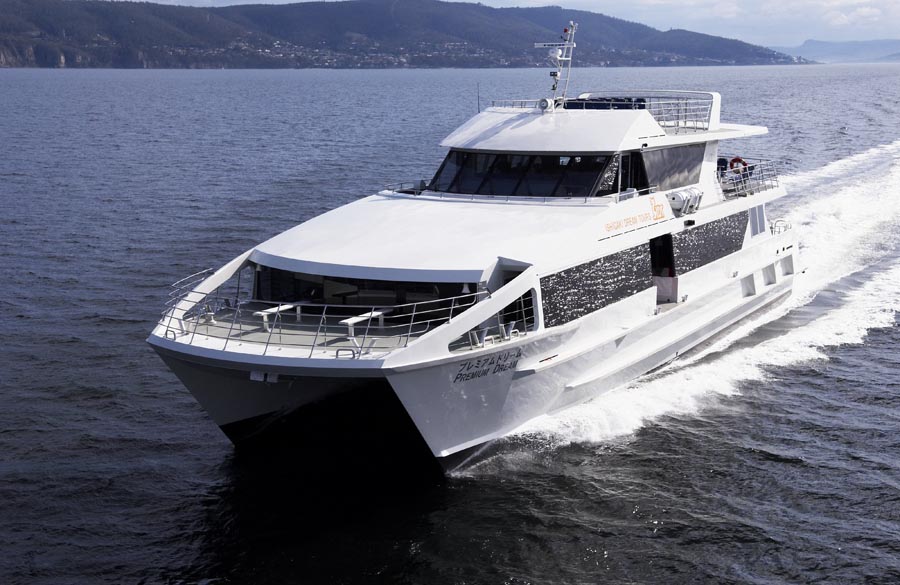

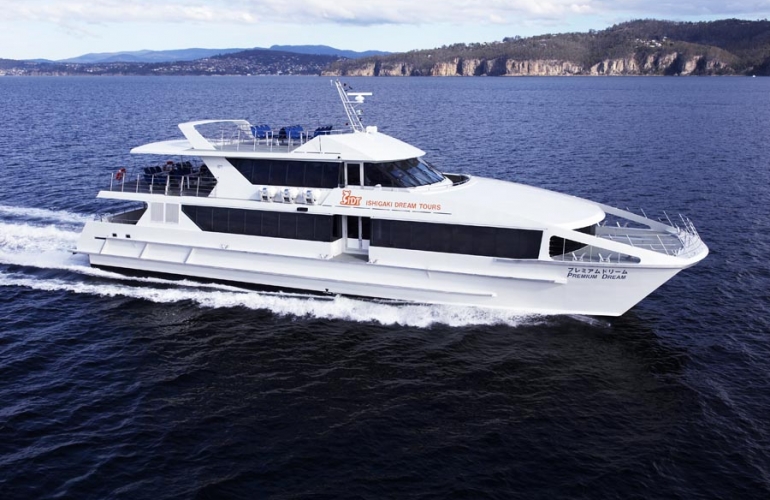

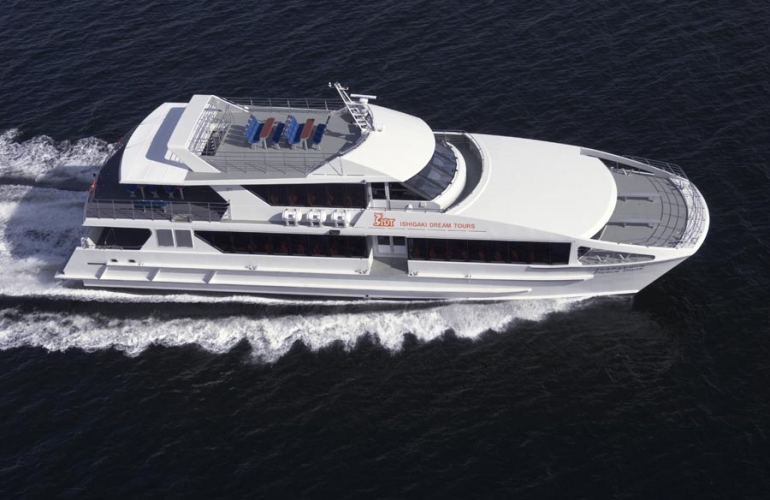

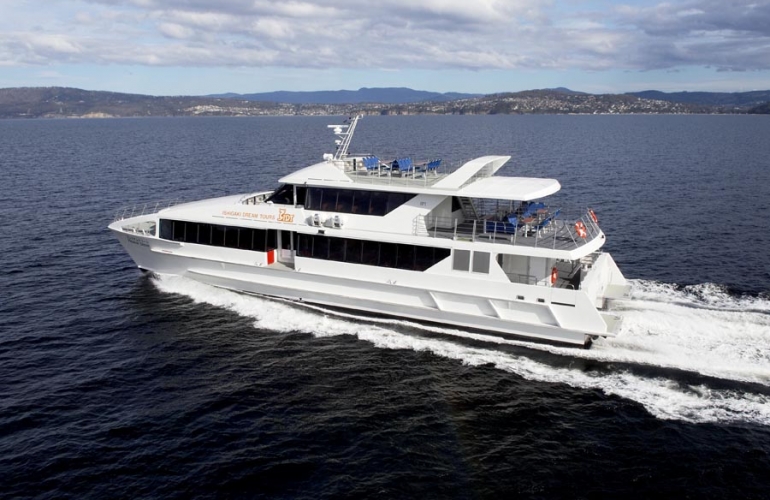

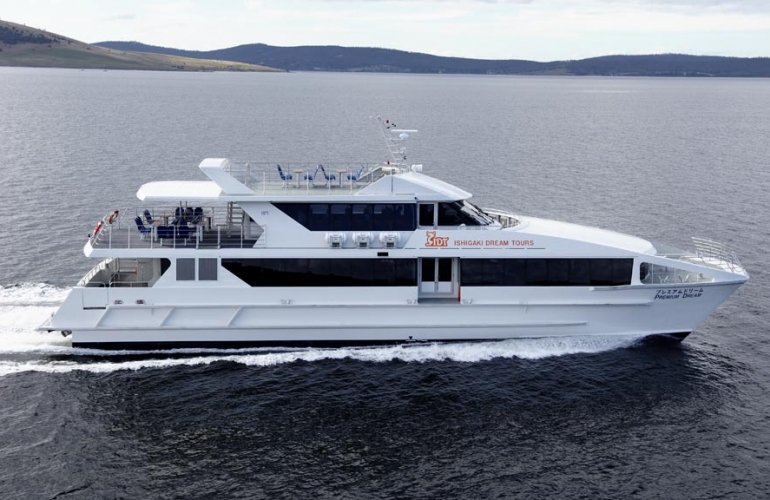

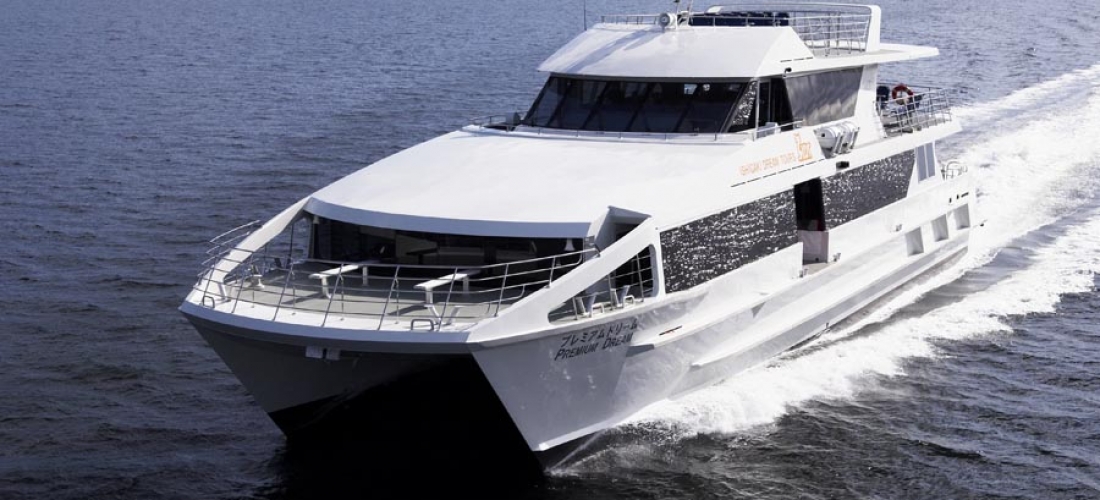

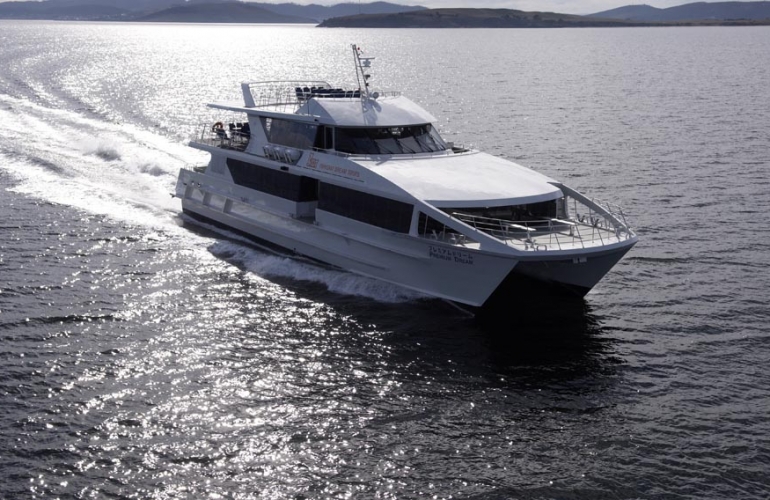

Premium Dream is 32m Catamaran Ferry built to operate in Japan.

The main deck cabin features 165 seats as well as space for 1 wheelchair. There is a large kiosk for the sale of snacks and souvenirs. A toilet block is located below the main deck in the port hull, while a larger toilet is located on the aft deck and sized for passengers with disabilities. There are two main passenger boarding positions.

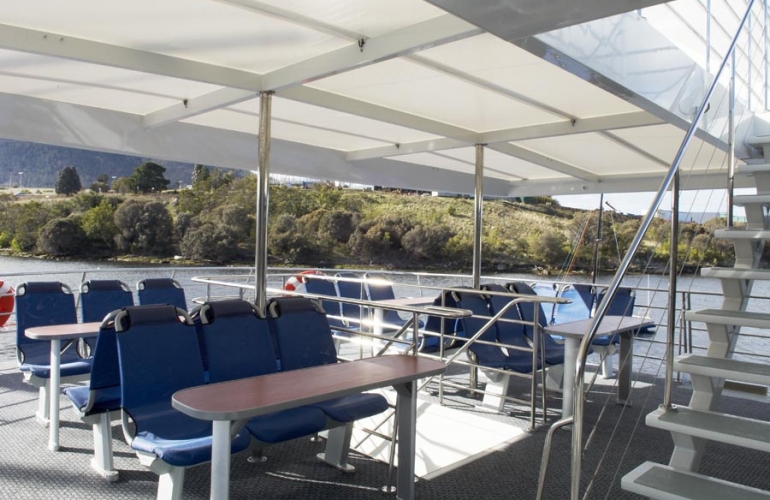

The mid deck cabin has been designed to a higher comfort level, featuring upgraded seating, private toilet facilities and a self service kiosk. The space has been restricted to 40 passengers maintaining a more exclusive feel to the cabin. The forward end also houses the vessels main helm. A central staircase leads to a flying bridge where there is further seating for 16 passengers.

The vessel is powered by two Cat C32 main engines each capable of producing 1400bhp. By using Incat Crowther’s highly developed propeller tunnels the hull design has been arranged to provide a very fuel efficient outcome, achieving a reputable 350 litres/hour at the vessels cruising speed.

Design Type:

32m Catamaran

Designer:

Incat Crowther

Survey:

Japanese Gov’t

Construction:

Aluminium

Service Speed:

28 Knots

Fuel Consumption:

350 litres/hr

Range:

650nm @ service speed

Length Overall:

32.00m­­­­­­­

Beam:

8.50m

Depth:

3.05m

Draft (Prop):

1.70m

Draft (Hull):

1.25m

Main Engines:

2 x Caterpillar C32

Power:

2 x 1045 bkW

Propulsion:

2 x Fixed Pitch Prop

Passenger Capacity:

245

Loaded Deadweight:

25.54 tonnes

Fuel Capacity:

2 x 4,000 litres

Water Capacity:

1 x 2,000 litres
